Our 3MP Outdoor Powered Wi-Fi Floodlight Camera can be viewed as a standalone camera with a Wi-Fi connection via the Night Owl Protect App or added to a compatible recorder. This article will walk you through both adding the camera to the app as a standalone camera and adding it to a recorder.
Follow the detailed steps below:
Option 1 - Add to the Night Owl App as a Standalone camera
STEP 1: Download the Night Owl App. If you are a first-time user, go ahead and download the Night Owl mobile app. Quickly create an account and log in. Already have an account? Simply log in.

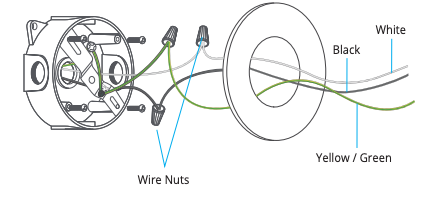

STEP 2: Ensure that the Floodlight Camera is wired to receive power. For Instruction on how to wire the Floodlight Camera, review the Quick Setup Guide that came with your camera or click on the below link to download the guide.
FWIP3 Floodlight Quick Setup Guide

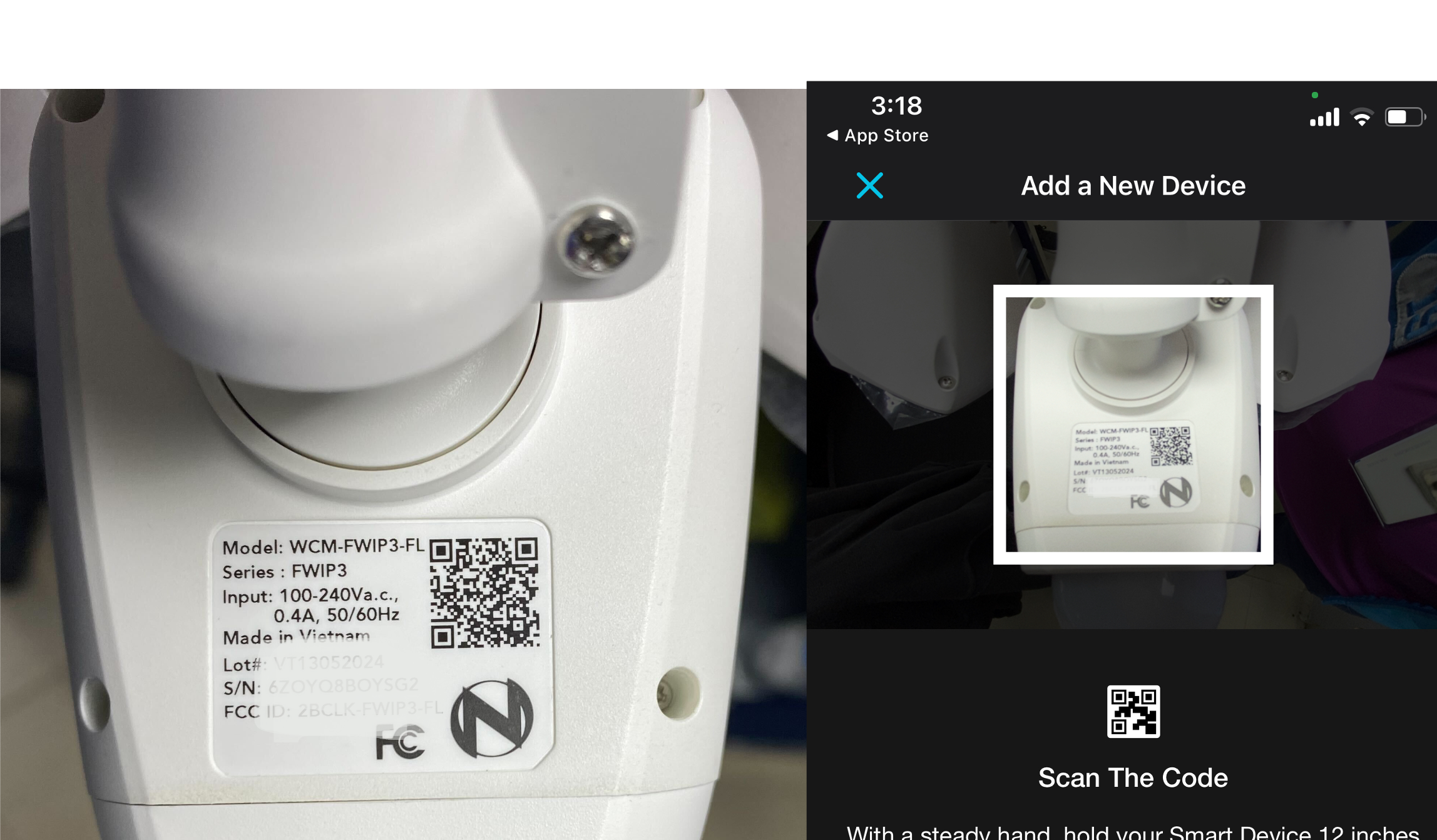

STEP 3: From within the app, proceed to the Devices page and Tap on “Add New” or “+” and scan the QR code on the bottom of your camera.
IMPORTANT: The app may prompt you to grant access to your mobile device's camera to scan the QR Code.
STEP 4: The app will now access the camera's WLAN network. Once this occurs it will search for available Wi-Fi networks. Please ensure you have the name and password for your Wi-Fi network handy. Tap "Join" to continue.
STEP 5: Your mobile device is now connected to your camera and will search for available Wi-Fi networks. Choose your Wi-Fi network.
STEP 6: Enter the password for your Wi-Fi network.

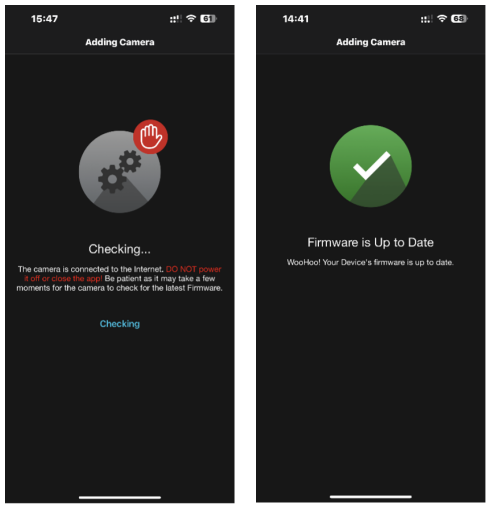

STEP 7: Your camera will now check for available firmware (FW) updates. DO NOT disconnect your camera during this search. May take 1 to 3 minutes to search for and update the FW.

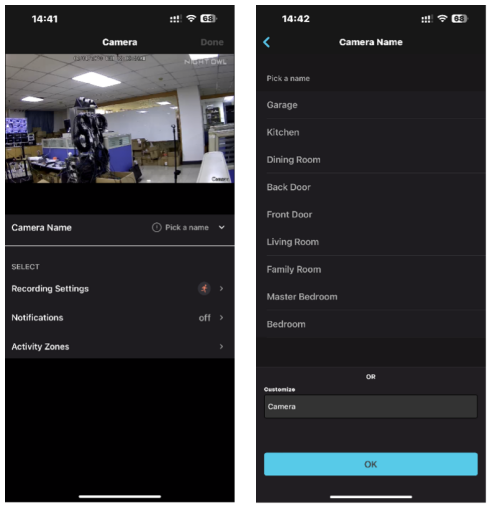

STEP 8: You will now be required to name your camera. You can choose a preset option or customize the name. Additionally, you may adjust your camera's recording and notification settings at this time or circle back later on.

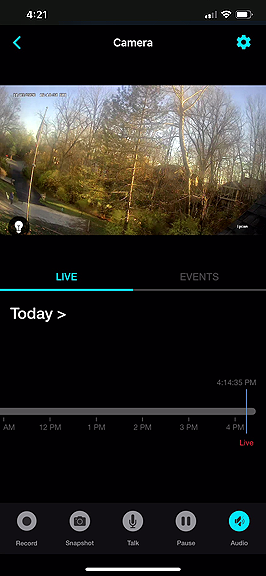

STEP 9: Your camera is now set up and ready for live view!
Option 2 - Add to a Compatible Wi-Fi Recorder from Night Owl Protect App
STEP 1: Download the Night Owl App. If you are a first-time user, go ahead and download the Night Owl mobile app. Quickly create an account and log in. Already have an account? Simply log in.
STEP 2: Ensure that the Floodlight Camera is wired to receive power. For Instruction on how to wire the Floodlight Camera, review the Quick Setup Guide that came with your camera or click on the below link to download the guide.
FWIP3 Floodlight Quick Setup Guide
STEP 3: From within the app, proceed to the Devices page and Tap on “Add New” or “+” and scan the QR code on the bottom of your camera.
IMPORTANT: The app may prompt you to grant access to your mobile device's camera to scan the QR Code.
STEP 4: The app will now access the camera's WLAN network. Once this occurs it will search for available Wi-Fi networks. Please ensure you have the name and password for your Wi-Fi network handy. Tap "Join" to continue.
STEP 5: Your mobile device is now connected to your camera and will search for available Wi-Fi networks. Choose your Wi-Fi network.
STEP 6: Enter the password for your Wi-Fi network.
STEP 7: Your camera will now check for available firmware (FW) updates. DO NOT disconnect your camera during this search. May take 1 to 3 minutes to search for and update the FW.

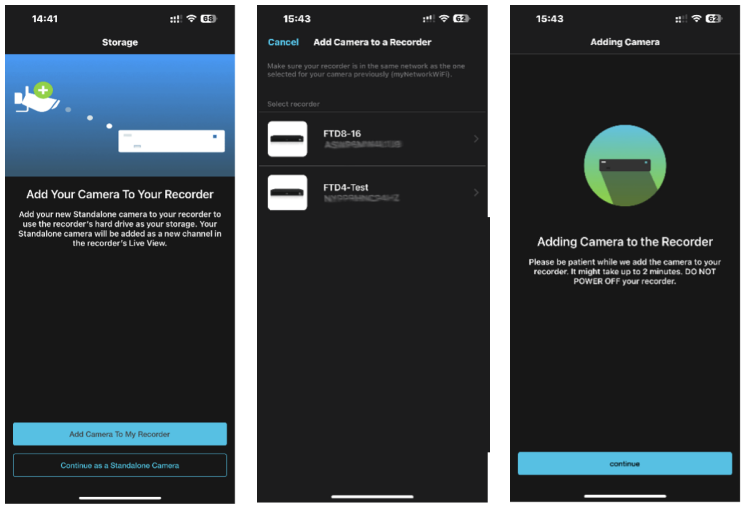

STEP 8: On the Storage screen, tap "Add Camera to My Recorder" then choose the recorder you wish to add the camera to.
STEP 9: You will now be required to name your camera. You can choose a preset option or customize the name. Additionally, you may adjust your camera's recording and notification settings at this time or circle back later on.
STEP 10: Your camera is now set up and ready for live view!
Option 3 - Manually Adding Your Camera to a Compatible Recorder

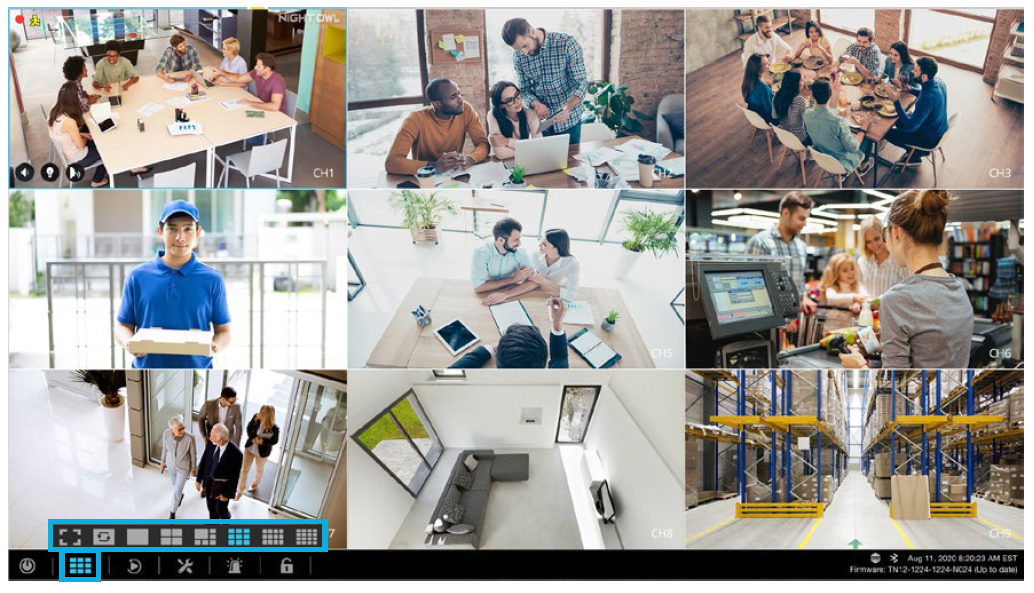

STEP 1: Log in to your compatible Night Owl recorder.

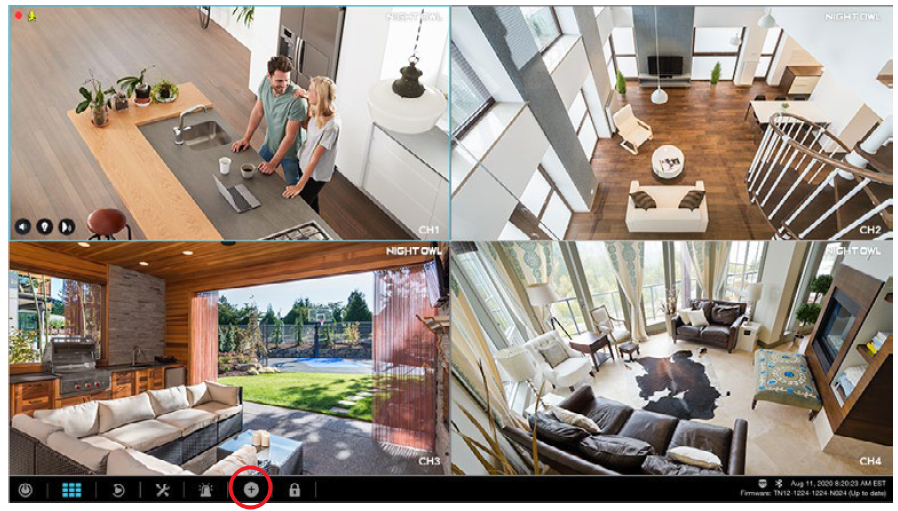

STEP 2: Click the "+" at the bottom of your live view screen.

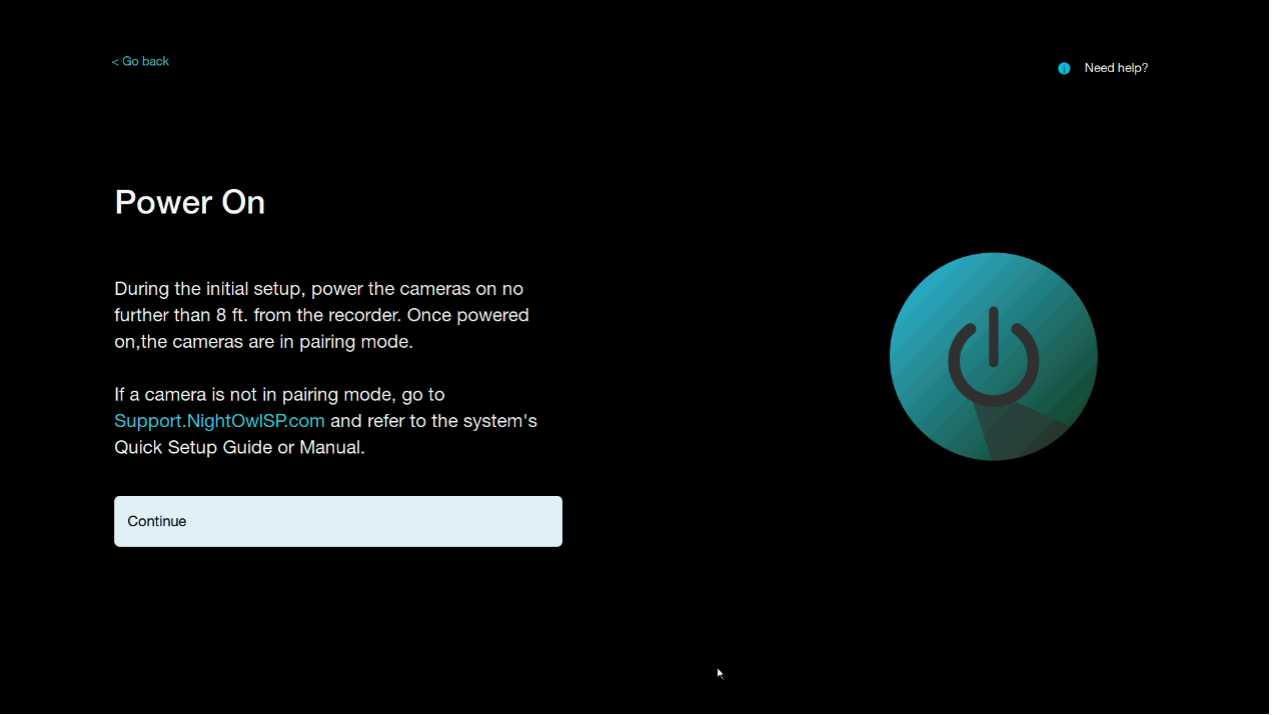

STEP 3: Ensure you plug in your camera within 8 ft. of the recorder and click "Continue."

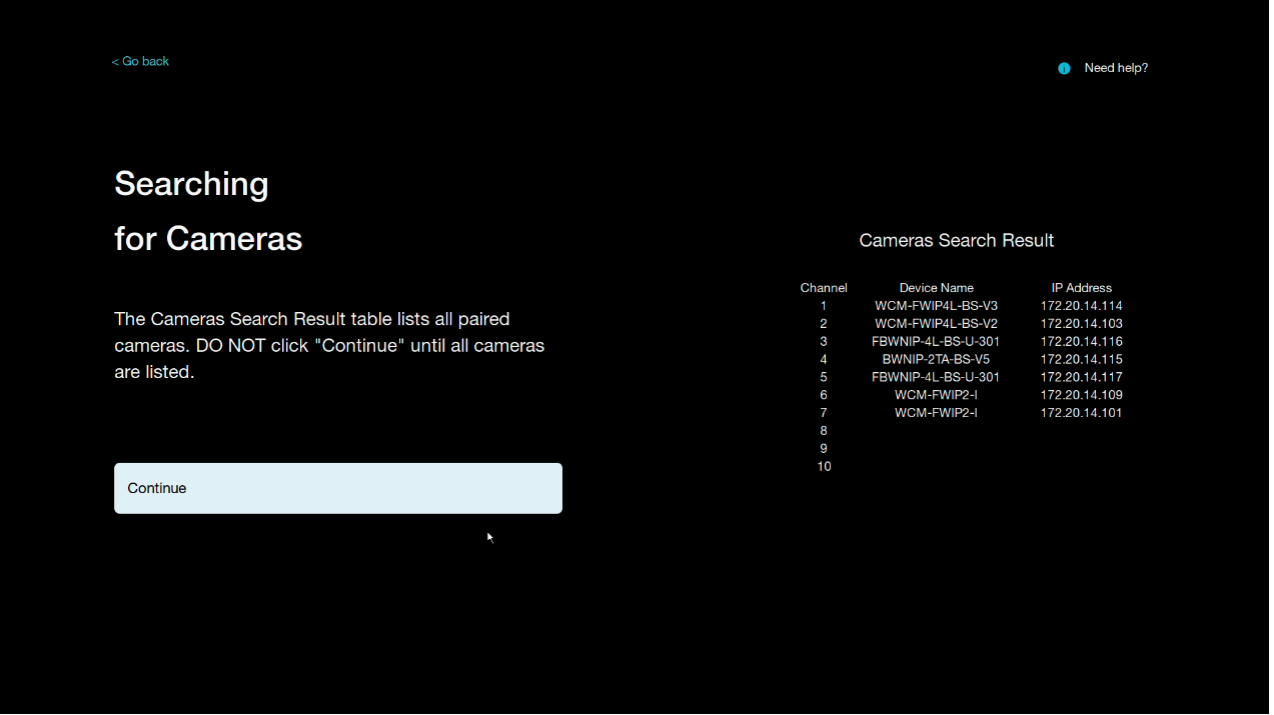

STEP 4: Your recorder will now search for your new camera. Once you see all connected cameras, including your new camera, in the right Search Result field click "Continue."

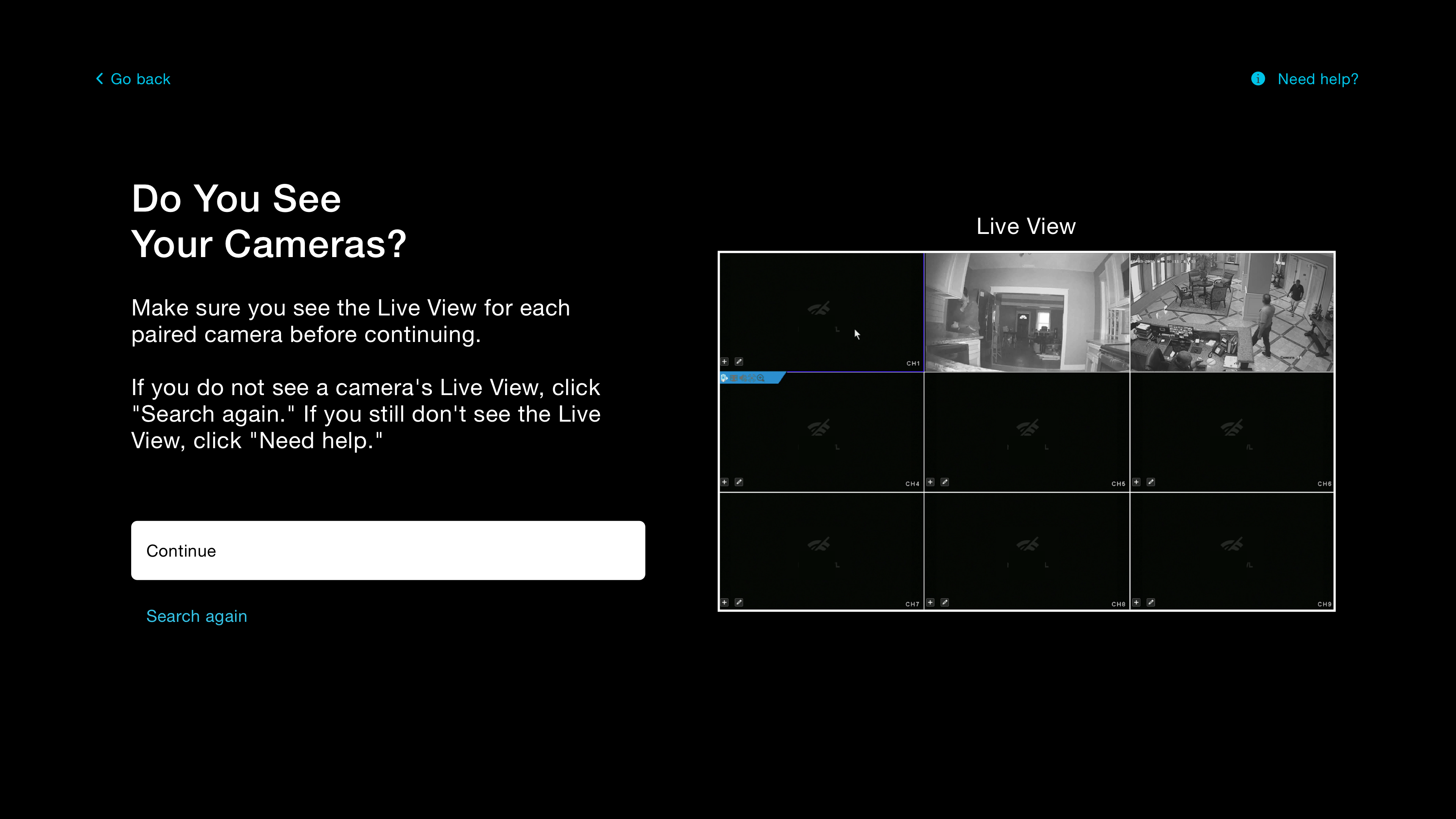

STEP 5: Confirm that you see the live view for all connected cameras and then click "Continue."
STEP 6: You can now live view your cameras!
Thank you for Choosing Night Owl!
