Our 3MP Pan and Tilt Indoor Plug-In Wireless Camera can be viewed as a standalone camera with a Wi-Fi connection via the Night Owl Protect App or added to a compatible recorder. This article will walk you through both adding the camera to the app as a standalone camera and adding it to a recorder.
Follow the detailed steps below:
Option 1 - Add to the Night Owl App as a Standalone camera
STEP 1: Download the Night Owl App. If you are a first-time user, go ahead and download the Night Owl mobile app. Quickly create an account and log in. Already have an account? Simply log in.

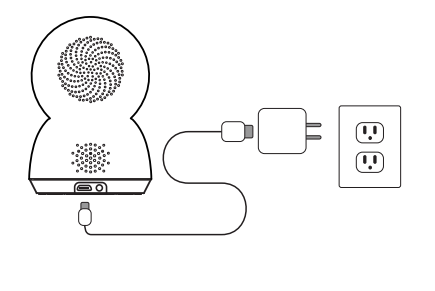

STEP 2: Use the provided USB cable and power adapter to plug your camera into an outlet.
IMPORTANT: For initial setup/pairing, have your camera within 1 to 3 feet of your router.

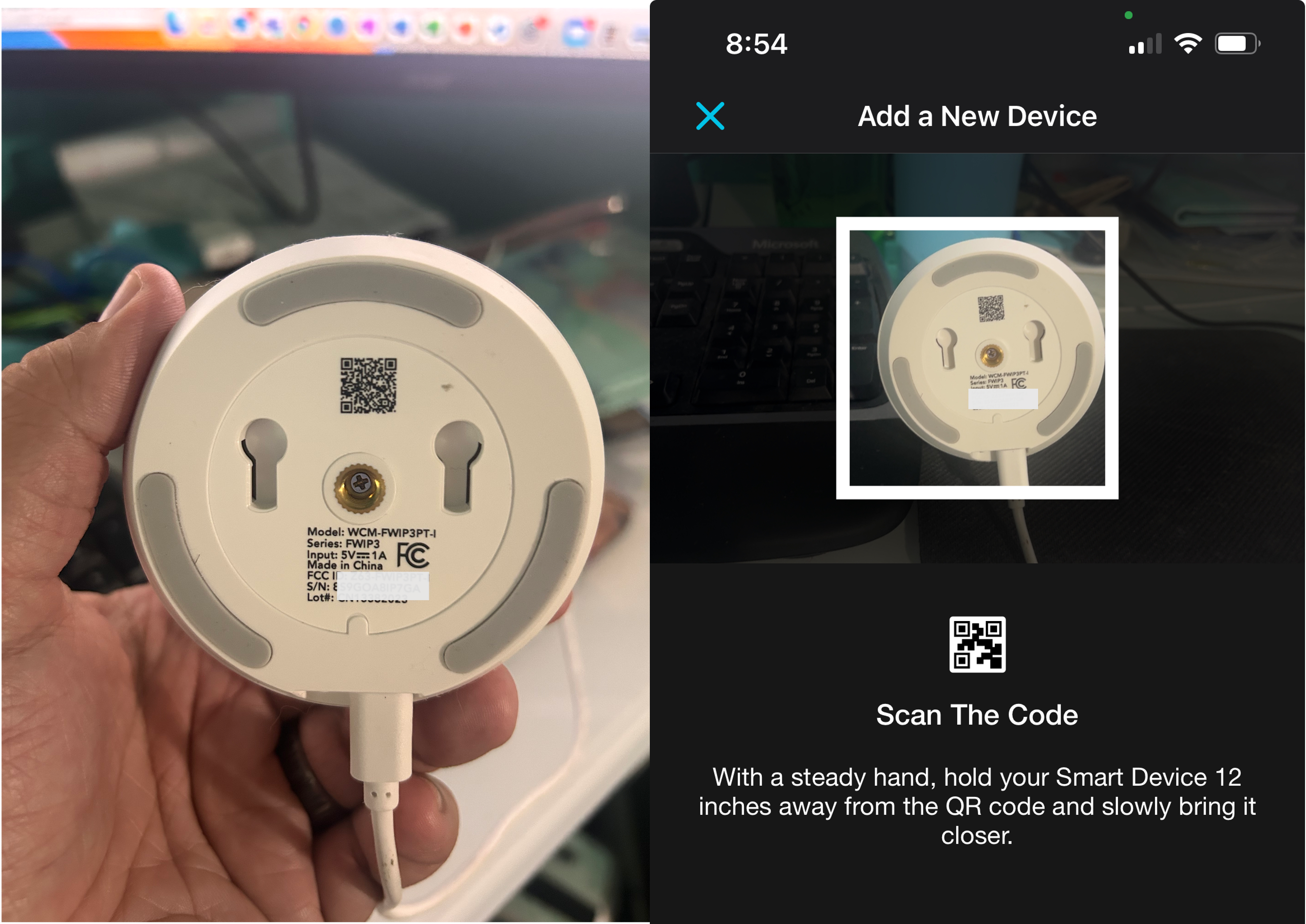

STEP 3: From within the app, proceed to the Devices page and Tap on “Add New” or “+” and scan the QR code on the bottom of your camera.
IMPORTANT: The app may prompt you to grant access to your mobile device's camera to scan the QR Code.

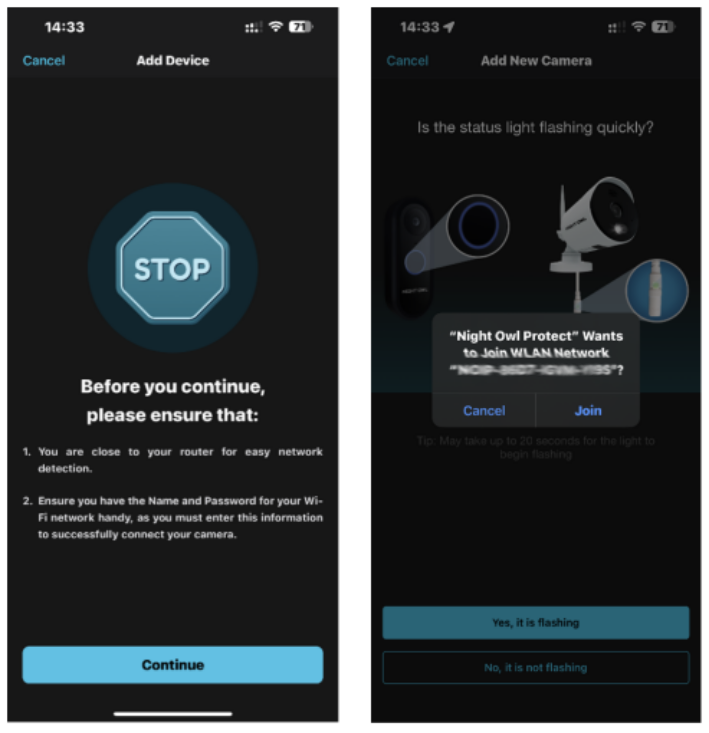

STEP 4: The app will now access the camera's WLAN network. Once this occurs it will search for available Wi-Fi networks. Please ensure you have the name and password for your Wi-Fi network handy. Tap "Join" to continue.

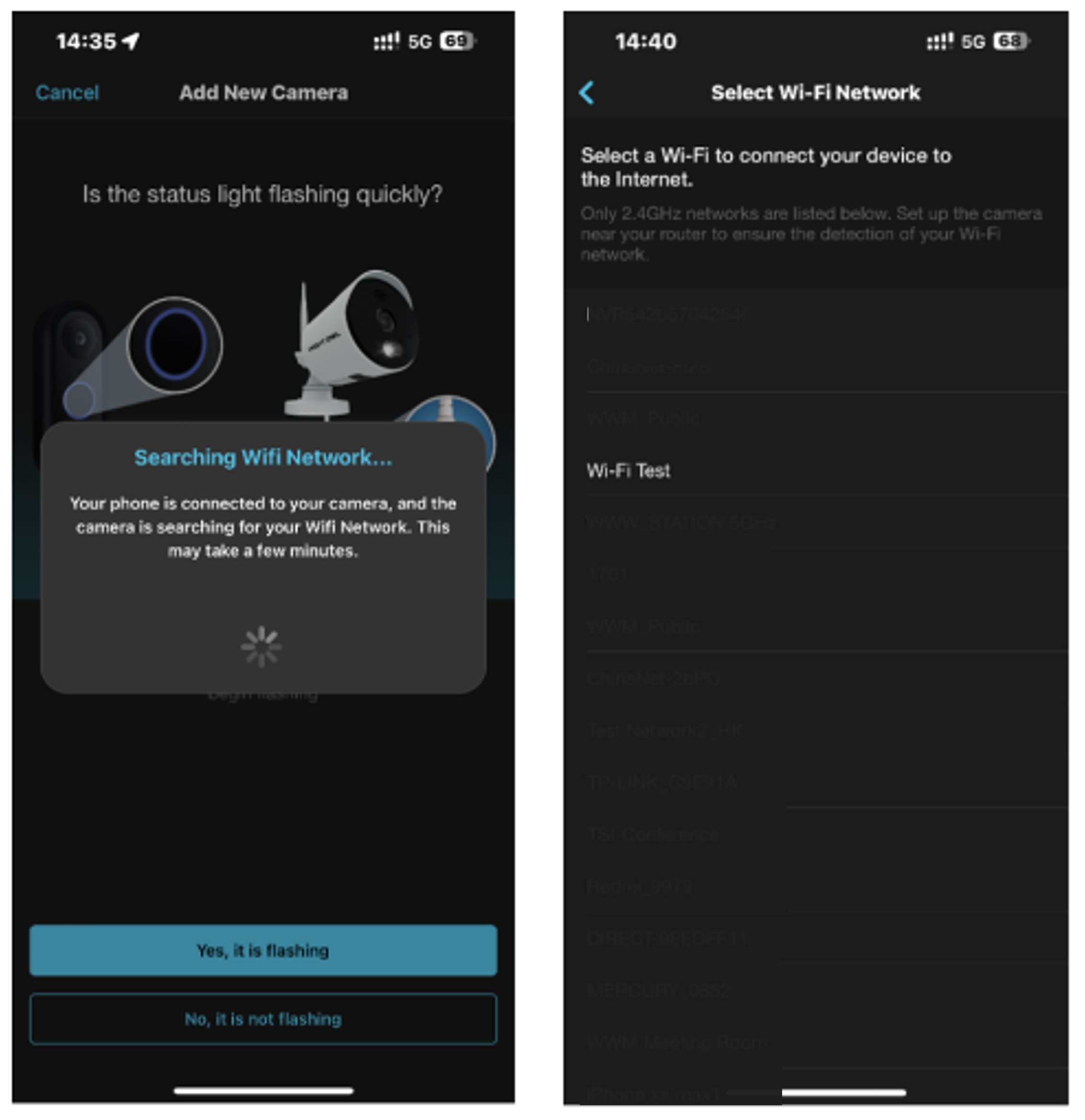

STEP 5: Your mobile device is now connected to your camera and will search for available Wi-Fi networks. Choose your Wi-Fi network.

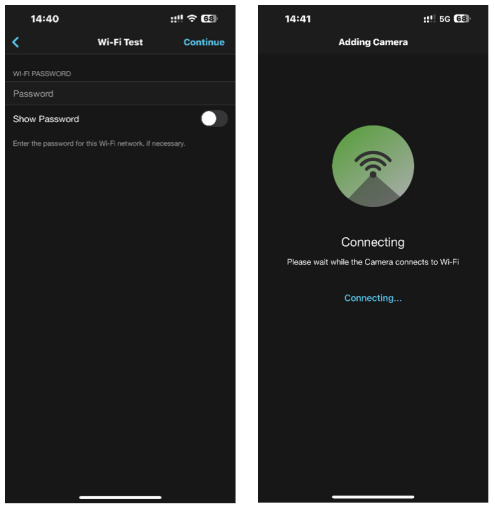

STEP 6: Enter the password for your Wi-Fi network.

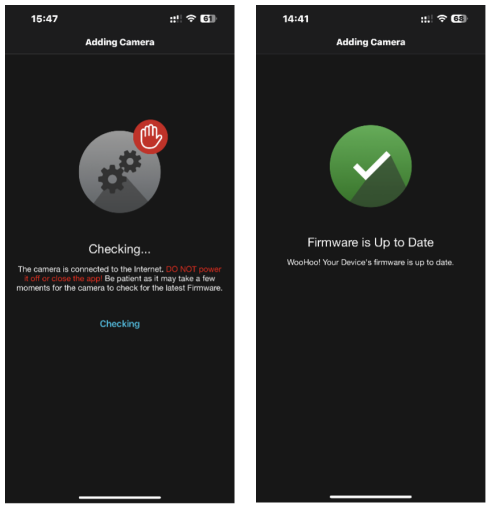

STEP 7: Your camera will now check for available firmware (FW) updates. DO NOT disconnect your camera during this search. May take 1 to 3 minutes to search for and update the FW.

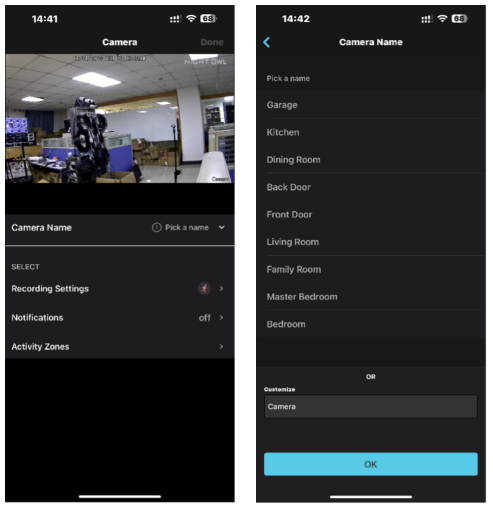

STEP 8: You will now be required to name your camera. You can choose a preset option or customize the name. Additionally, you may adjust your camera's recording and notification settings at this time or circle back later on.
STEP 9: Your camera is now set up and ready for live view!
Option 2 - Add to a Compatible Wi-Fi Recorder from Night Owl Protect App
STEP 1: Download the Night Owl App. If you are a first-time user, go ahead and download the Night Owl mobile app. Quickly create an account and log in. Already have an account? Simply log in.
STEP 2: Use the provided USB cable and power adapter to plug your camera into an outlet.
IMPORTANT: For initial setup/pairing, have your camera within 1 to 3 feet of your router.
STEP 3: From within the app, proceed to the Devices page and Tap on “Add New” or “+” and scan the QR code on the bottom of your camera.
IMPORTANT: The app may prompt you to grant access to your mobile device's camera to scan the QR Code.
STEP 4: The app will now access the camera's WLAN network. Once this occurs it will search for available Wi-Fi networks. Please ensure you have the name and password for your Wi-Fi network handy. Tap "Join" to continue.
STEP 5: Your mobile device is now connected to your camera and will search for available Wi-Fi networks. Choose your Wi-Fi network.
STEP 6: Enter the password for your Wi-Fi network.
STEP 7: Your camera will now check for available firmware (FW) updates. DO NOT disconnect your camera during this search. May take 1 to 3 minutes to search for and update the FW.

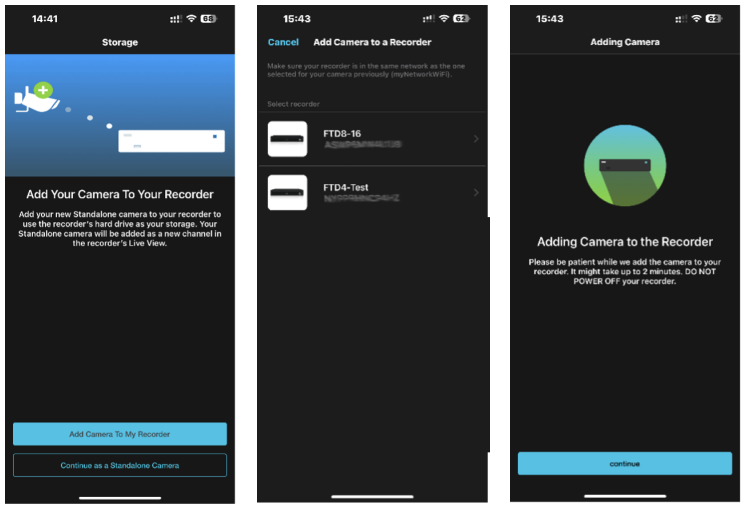

STEP 8: On the Storage screen, tap "Add Camera to My Recorder" then choose the recorder you wish to add the camera to.
STEP 9: You will now be required to name your camera. You can choose a preset option or customize the name. Additionally, you may adjust your camera's recording and notification settings at this time or circle back later on.
STEP 10: Your camera is now set up and ready for live view!
Option 3 - Manually Adding Your Camera to a Compatible Recorder
STEP 1: Log in to your compatible Night Owl recorder.

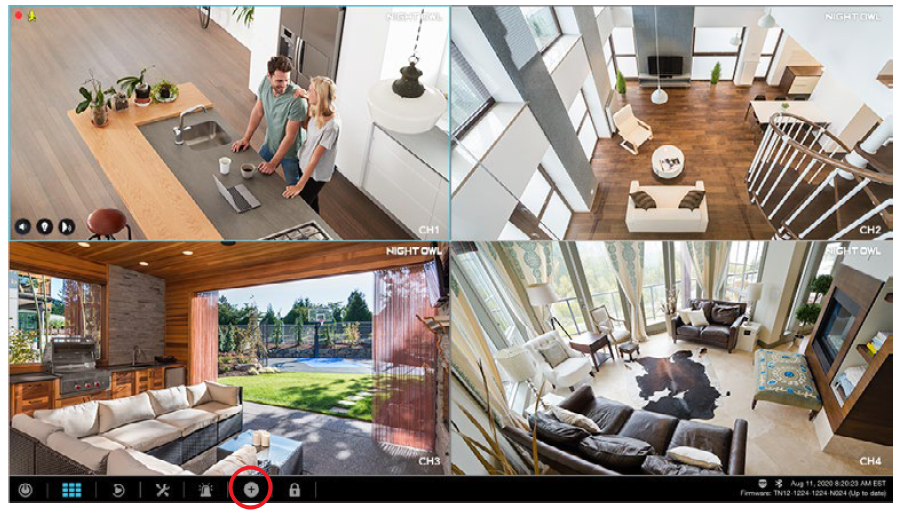

STEP 2: Click the "+" at the bottom of your live view screen.

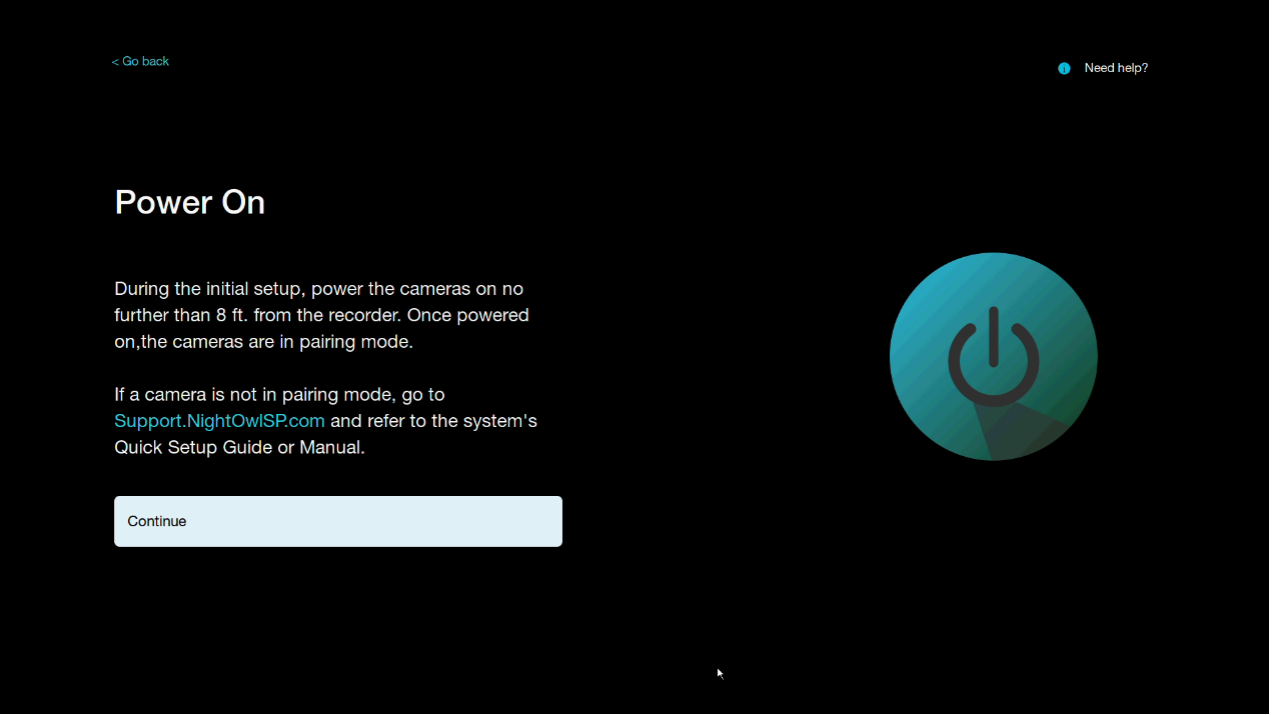

STEP 3: Ensure you plug in your camera within 8 ft. of the recorder and click "Continue."

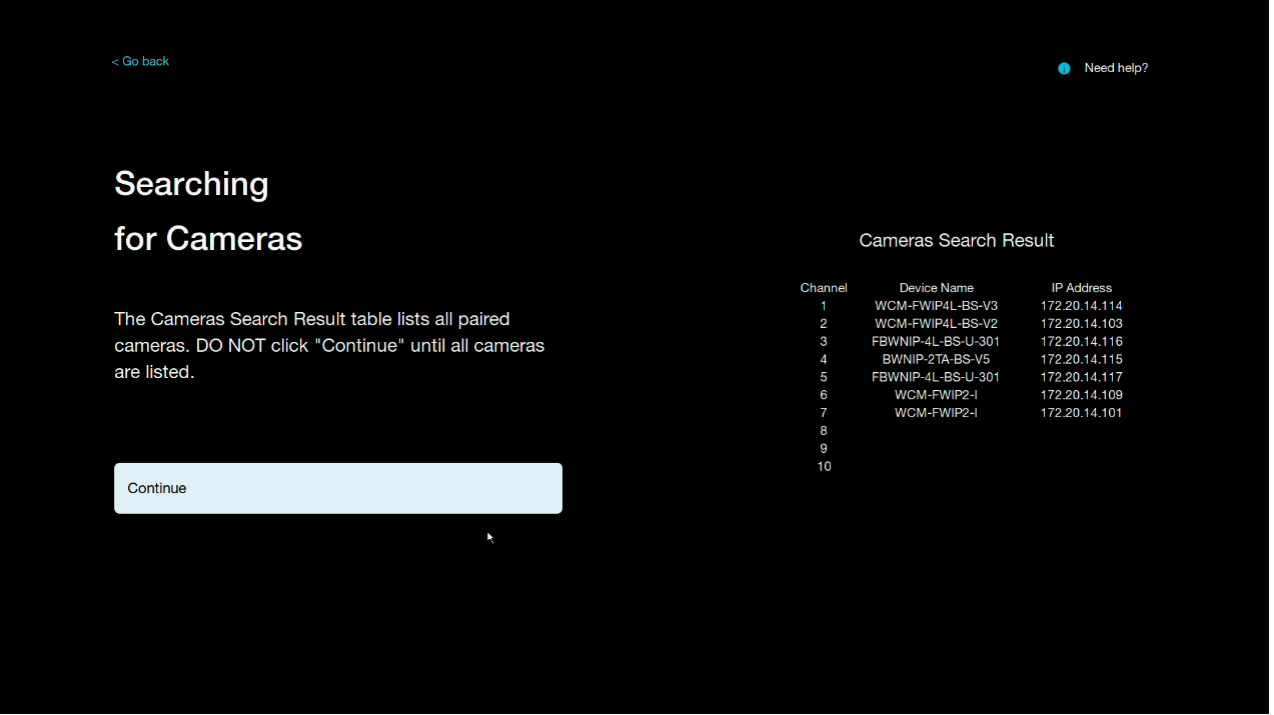

STEP 4: Your recorder will now search for your new camera. Once you see all connected cameras, including your new camera, in the right Search Result field click "Continue."

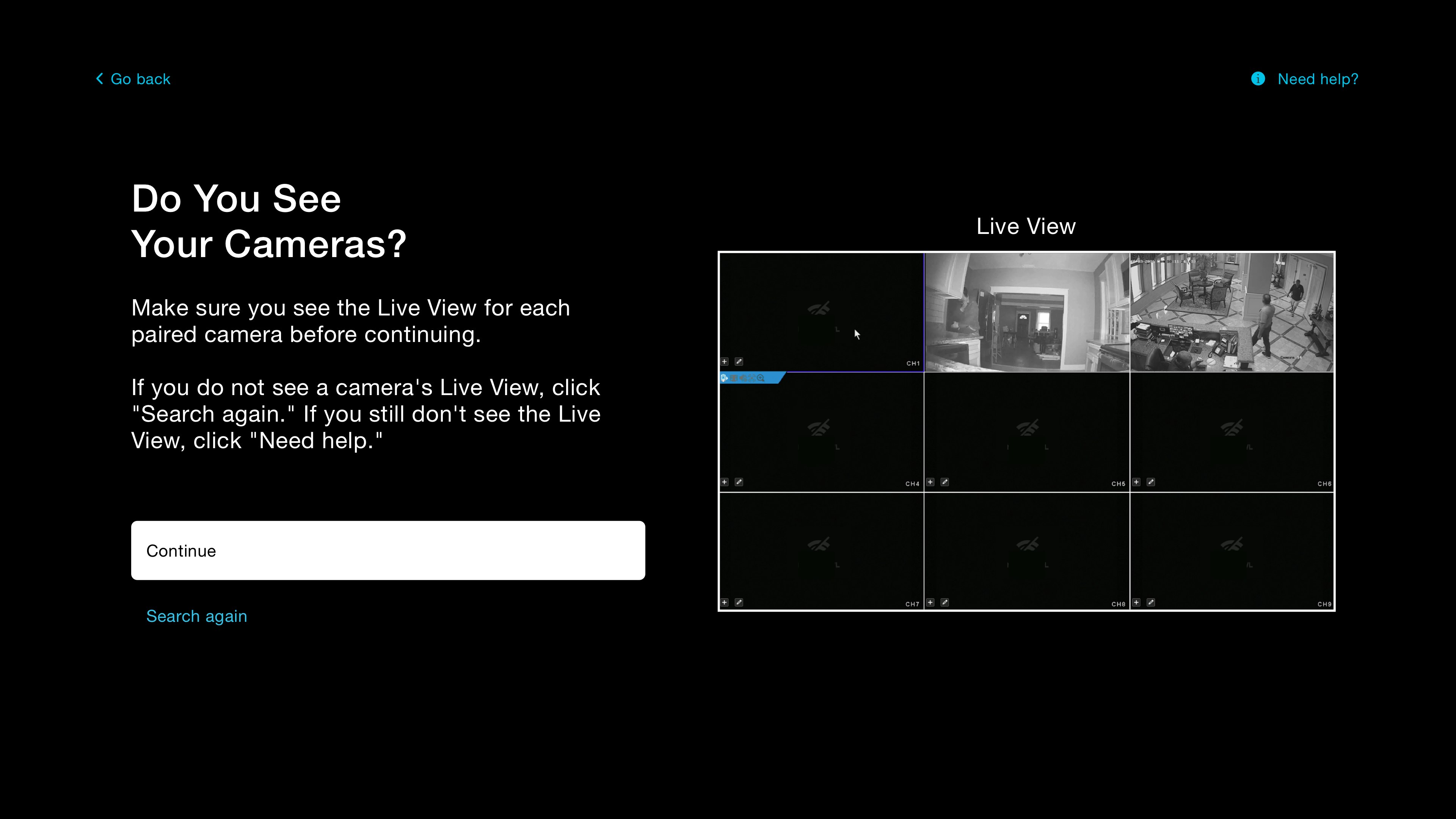

STEP 5: Confirm that you see the live view for all connected cameras and then click "Continue."
STEP 6: You can now live view your cameras!
Thank you for Choosing Night Owl!
